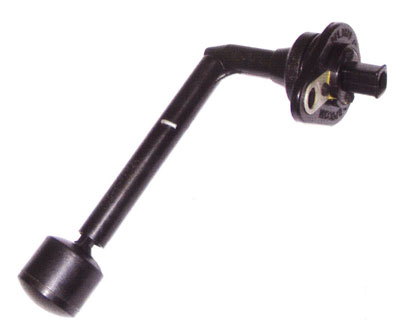

Printliquid level detectors (LLD-2)
The liquid level detectors (LLD-2) applied to switching DC-electric circuits with the frequency of not more than 5 operations in a second in the signalization system of motor vehicles when lowering the level of a control liquid or oil up to maximum rate.
Specifications
| Parameter name, measurement unit | Normal | Sensor code | |
| Not less | Not more | ||
| Sensor length, mm | - | 143 | 24.3839 |
| Nominal voltage, V | - | 12 | |
| Switching current, A | - | 0,25 | |
| Isolation resistance, Ohms | 1·107 | - | |
| Breakdown voltage, VDC | 550 | - | |
| Operating temperature range, 0 C | - 55 | +130 | |
| High humidity at +55 ºС, % | - | 95 | |
