PrintIO 102-2

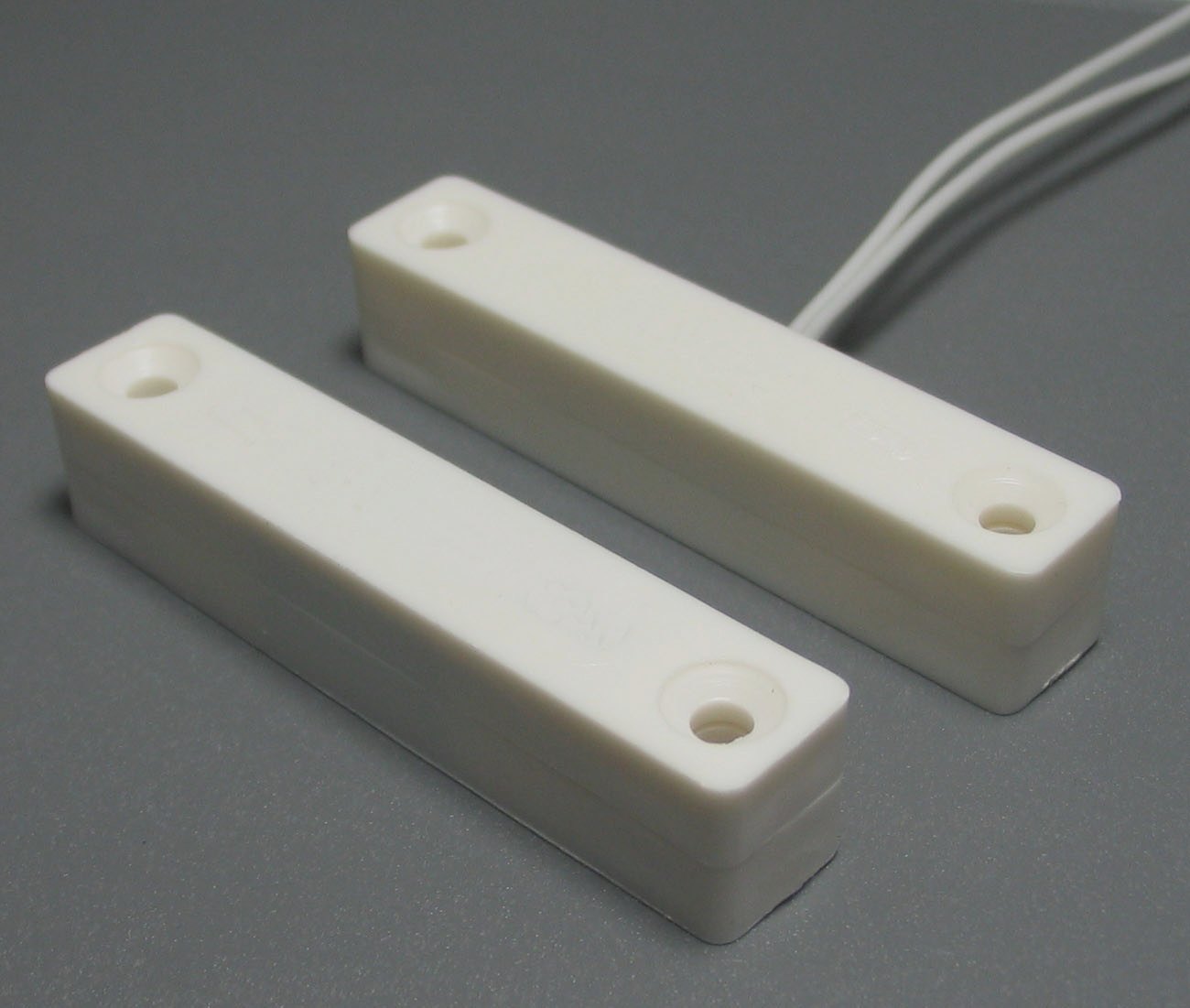

IO 102-2 security magnetically contact detector is designed for locking doorways and windows, arranging "trapping" medium as well as locking other elements of buildings with an alarm signal raised to a control panel, concentrator or central surveillance system by opening reed switch contacts.
Detector consists of a reed sensor and driving element (magnet) in plastic housing. It is designed for continuous operation.
Specifications
| Switching voltage range, V | 0,05-72 |
| Switching current range, mА | 0,1-250 |
| Life at 0,25А – 30V, min | 106 |
|
Output electrical resistance: • at closed contacts (at (100±10)mА), Ohm, max • at open contacts, kOhms, min |
0,5 |
|
If sensor and magnet are located parallel contacts should be: • closed – at the distance between them, mm • open – at the distance between them, mm |
10 and less 45 and more |
| Allowable offset of sensor and magnet, mm, max | 3 |
|
Insulation resistance between leads of sensor: • in normal climatic conditions, Ohms, min • at high relative humidity 98%, Ohms, min |
5 · 106 |
| Breakdown voltage between sensor leads and case, VAC /VDC , min | 500 / 700 |
| Operating temperature range, °С | -50 … +50 |
| High humidity at +25 0С, %, max | 98 |
| Vibration proof at 10 to 35 Hz, m·sec-2 (g), max | 4,9 (0,5) |
| Failure time, h, min | 200000 |
| Life time, years, min | 8 |
| Sensor/magnet weight, g, max | 7/14 |
Installation:
- Ø3x20mm screws are applied to the wooden surface. Installation onto the metal surface is performed with the help of wooden, cloth laminate layer, etc. with thickness of 25-30 mm. It is glued onto the glass surface. Sensor leads are connected to the line by twisting and soldering with insulation followed.
IO 102-2
PDF, 116,74 Kb
