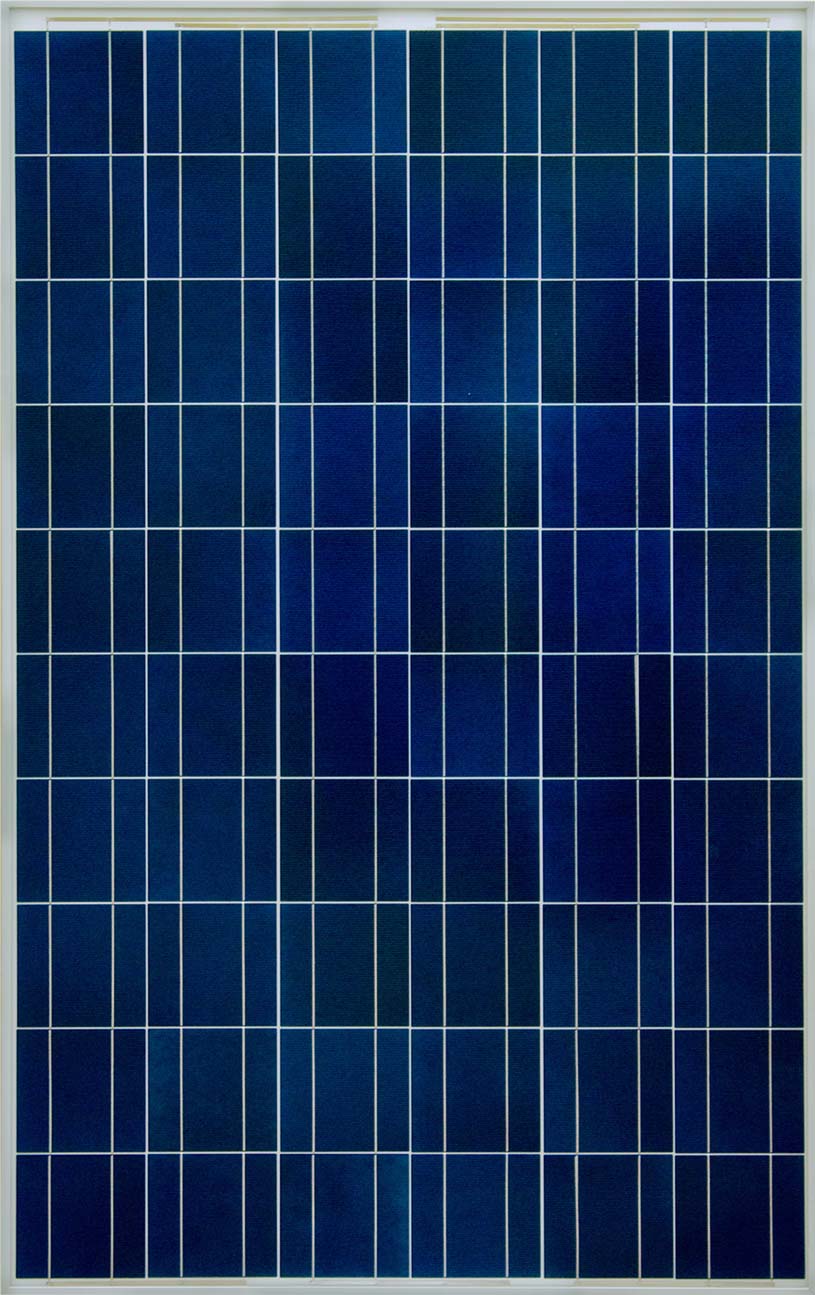

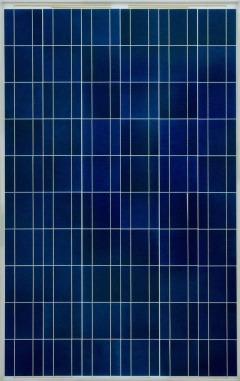

Type: RZMP-220-T

Add to cart

Type: RZMP-220-T

Models:

RZMP-200-T, RZMP-205-T, RZMP-210-T,
RZMP-215-T, RZMP-220-T, RZMP-225-T,
RZMP-230-T, RZMP-235-T, RZMP-240-T,

Application

This type of a PV module is applied in grid-connected systems. It also can be used in stand-alone systems with MPPT controllers.

Main Features

Using of tempered glass makes the module more durable. The module is protected from hail, wind and ice.

Low FeO provides high transparancy and increases module efficiency.

Textured glass provides high power output by more proper gathering of solar insulation.

High sensitive surface of the cells increases power output even in weather conditions and winter time.

Using of the back-sheet reduces vapour permeability and protects a module from weather conditions. Due to proper heat conduction of the back-sheet, the module is cooled and power output increases.

Frame coating protects from rust.

The Box is supplied with cables and easy-to-use connectors.

Warranty -25 years

Specifications


Model

200

205

210

215

220

225

230

235

240

Peak Power, W (+3%)

200

205

210

215

220

225

230

235

240

Rated Voltage, V 27.7 27.9 28.1 28.25 28.4 28.6 28.8 28.9 29.1
Rated Current, А
7.25 7.35 7.50 7.60 7.75 7.85 8.00 8.15 8.25
Open Circuit Voltage, V 35.7 35.9 36.2 36.5 36.7 37.0 37.3 37.5 37.8
Short Circuit Current, A 7.9 8.0 8.1 8.2 8.3 8.4 8.5 8.65 8.75
Cell/Module Efficiency, % 14.3/12.4 14.6/12.7 15.0/13.0 15.4/13.4 15.7/13.7 16.1/14.0 16.4/14.3 16.8/14.6 17.1/14.9
Temperature Coefficients, % / oC α(Isc) = 0,20 ; β(Uoc) = -0,27 ; γ(Pmpp) = -0,40
NOCT, oC 46.8
Total Area, м2 1.61
Dimensions, мм 1640(±2) x 980(±2) x 36(±1)
Weight, kg 21.5
Front Patterned tempered glass 4 mm, Albarino S, Saint Gobain Solar Glass
Cells 60 pcs., Multicrystalline Si 6.2” (156 x 156 mm), Eton or Tainergy
Cells Encapsulation EVA-film VistaSolar 496.10, Solutia Gmbx or Photocap 15295P/UF, Specialized Technology Resources, Inc.
Back Icosolar® 3554 0.35 mm White, Isovoltaic AG
Frame Adonized aluminium colored profile RAL 7035
Junction Box Tyco 1-1740657-0 (with 1000 mm length 4 mm2 cable)
Permissible Load, Pa 2400
Operating Temperature, °C - 40 up to 85
System Voltage, V 1000

Quality

Power of every module is tested individually

Every module has a serial number

Testing equipment is calibrated every year, using a reference module measured in Fraunhofer Institut

This type of PV modules was certified:

Solar PV 61215-61730 IEC 61215-2005, IEC61730-2004 , The certificate (valid until 18 Feb 2015)

rstГОСТ 12.2.007-75, The certificate

Quality Management System

TUV ISO 9001-2008, The certificate

Data Sheet
PDF, 1,71 Mb

Package
PDF, 477,54 Kb

Manual
PDF, 391,58 Kb

3D-model PDF
PDF, 2,23 Mb

You may need special software for viewing some types of files .
