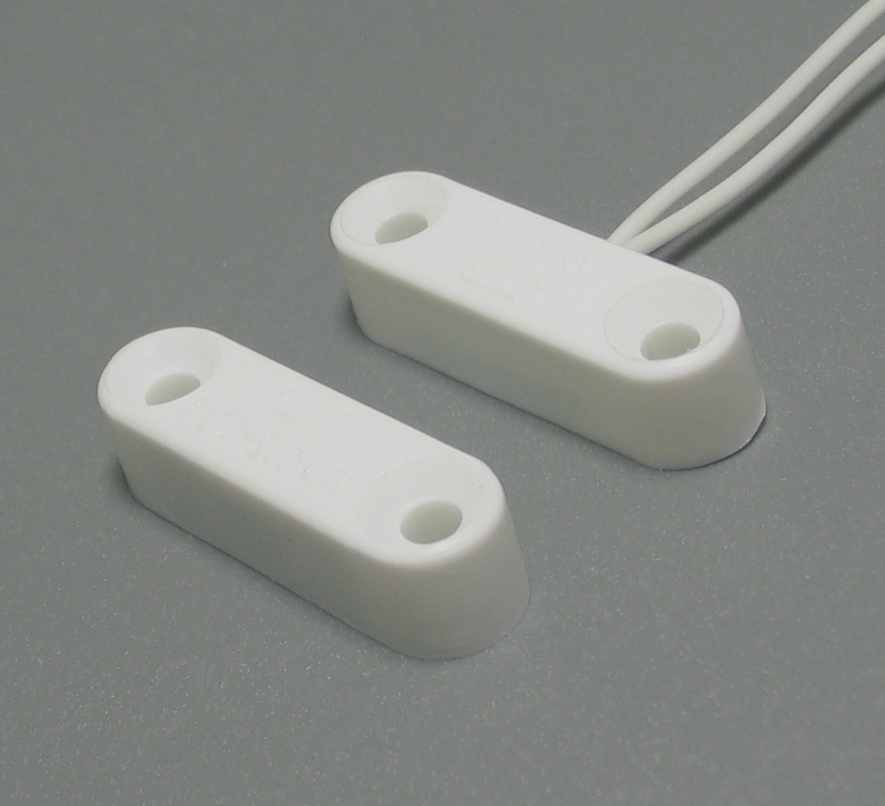

IO 102-16/1 security magnetically contact detector is designed for locking doorways and windows, arranging "trapping" medium as well as locking other elements of buildings with an alarm signal raised to a control panel, concentrator or central surveillance system by opening reed switch contacts.

Detector consists of a reed sensor and driving element (magnet) in plastic housing. It is designed for continuous operation.

Specifications

Switching voltage range, V 0,01-75
Switching current range, mА 5-250
Life at 0,25А – 30V, min 5·105

Output electrical resistance:

• at closed contacts (at (100±10)mА), Ohm, max

• at open contacts, kOhms, min

0,5
200

If sensor and magnet are located parallel contacts should be:

• closed – at the distance between them, mm

• open – at the distance between them, mm

8 and less

45 and more

Allowable offset of sensor and magnet, mm, max 3
Breakdown voltage between sensor leads and case, VAC /VDC , min 500 / 700
Operating temperature range, °С -30 … +50
High humidity at +25 0С, %, max 80
Vibration proof at 10 to 35 Hz, m·sec-2 (g), max 4,9 (0,5)
Life time, years, min 8
Sensor/magnet weight, g, max 2,5/2,3

Installation:

  • Ø3x20mm screws are applied to the wooden surface. Installation onto the metal surface is performed with the help of wooden, cloth laminate layer, etc. with thickness of 25-30 mm. It is glued onto the glass surface. Sensor leads are connected to the line by twisting and soldering with insulation followed.

извещатель охранный

IO 102-16/1
PDF, 117,27 Kb
