Reed Switches

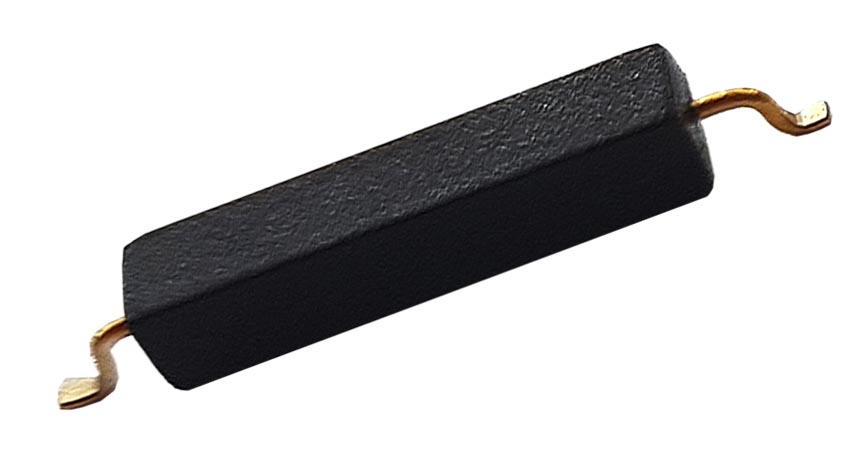

PrintMKA-10110MS
| Switching/carry current: | 0,5/0,5 A |
|---|---|
| Switching voltage: | 100 V (<15 AT) 200V (>15AT) |
| Switching power: | 10 W, VA |
| Pull in range: | 7...45 AT |
Application: operated relay contacts, magnetic switches, various sensors in household appliances, industrial and special equipment.
Packaging

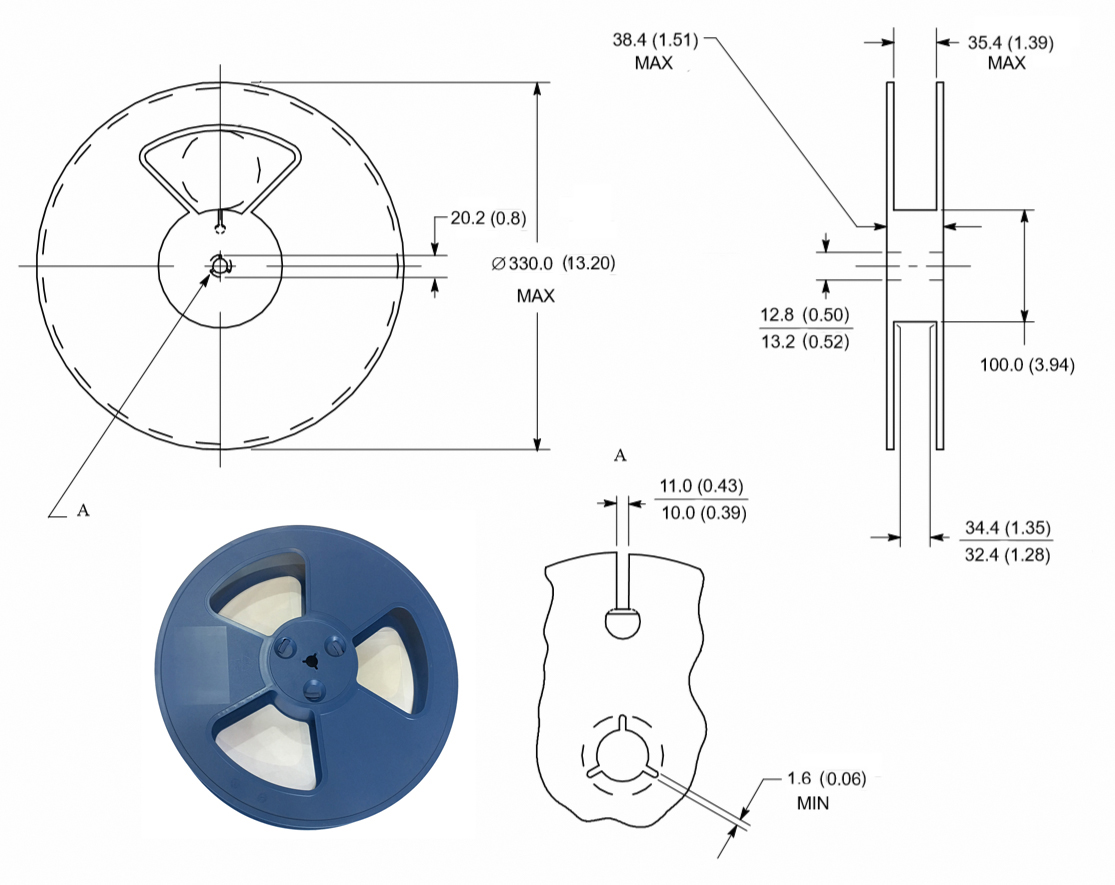

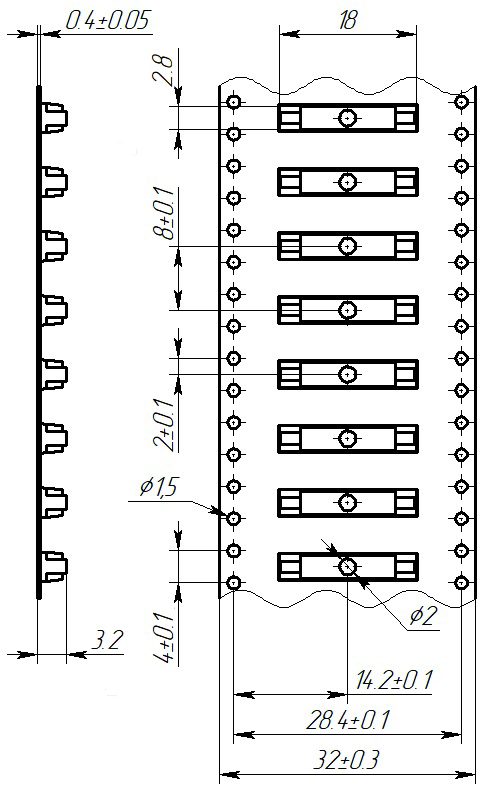

Reed switches are packed in continuous tapes according to IEC 60286-3-2013. The tapes come in reels. 1 reel consists 2100 psc.
| Tape | Reel |
 |
 |
Life versus mode conditions
| Operate mode | No of operations | Switching frequency, oper/sec, max | Load type, current type | |
| Current, А | Voltage, V | |||
|
5·10-6 ... 1·10-4 |
5·10-2 ... 0,5 |
5·106 |
100 | resistive, DC, AC |
|
1·10-4 ... 1·10-2 |
0,5 ... 15 |
5·106 |
100 |
resistive, DC |
|
1·10-2 ... 5·10-2 |
10 ... 50 |
2·105 |
50 |
resistive, DC |
|
5·10-2 ... 0,5 |
20 ... 100 |
1·105 |
50 |
resistive, DC |
| 0,01 | 5 | 5·106 | 400 | resistive, DC |
| 0,01 | 30 | 1·106 | 50 | resistive, DC |
|
0,13 |
72 |
1·106 |
50 | resistive, DC |
Operate AT is 1.5 times higher than max operate AT.
MKA-10110MS
PDF, 173,5 Kb
